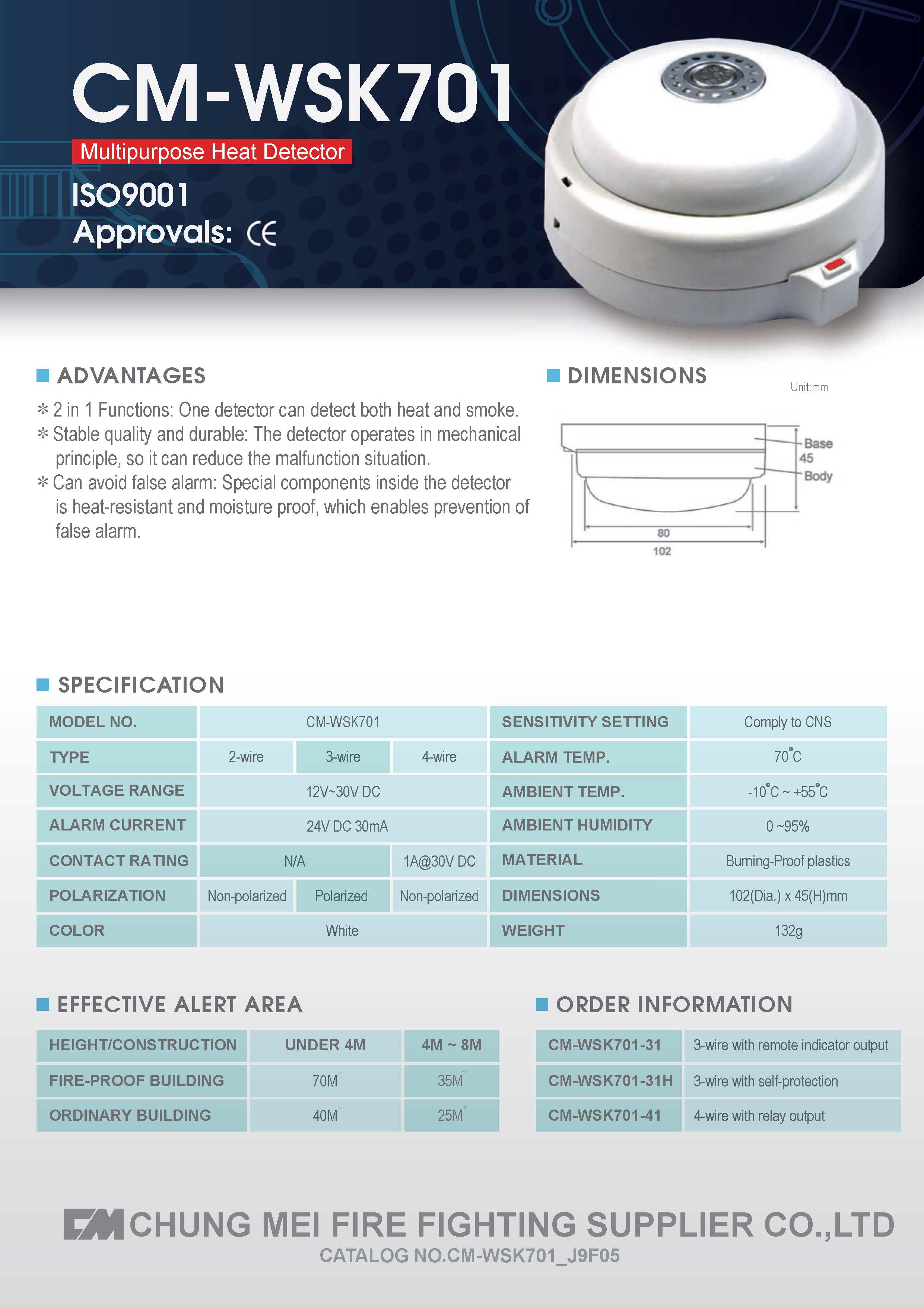

CM-WSK701 Multipurpose heat detector

Back to List
  • Product Feature
  • Product Specification
  • Certificate
  • Download

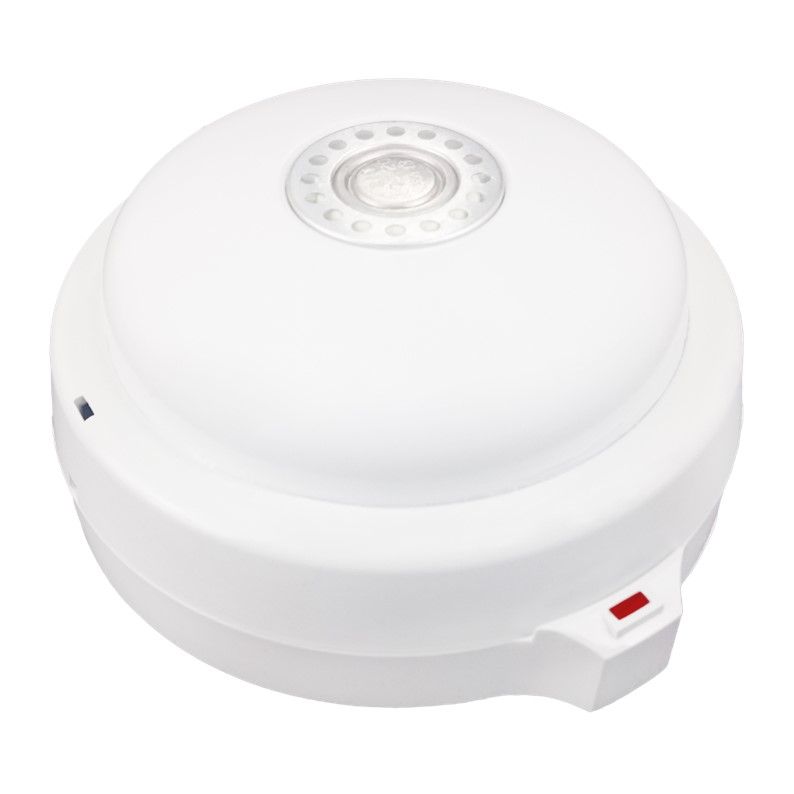

Multipurpose Heat Detector

  • The sensitive of fixed temperature heat detector part is stabilized performance, long-term durability and least malfunction are ensured by employing a bimetal echanism (certificate by UL)

  • Mechanical operating principle ensures the long-term durability and the least malfunction

  • The exhaust valve of rate of rise heat detector part uses optical fiber glass capillary tubing that is heat-resistant and moisture-proof to avoid false alarms

  • SPECIFICATION
MODEL NO. CM-WSK701
TYPE  2-wire 3-wire 4-wire
VOLTAGE RANGE  12V ～ 30V DC
CONTACT RATING  N/A 1A @ 30V DC
ALARM CURRENT  24V DC 30mA
POLARIZATION  Non-polarized Polarized Non-polarized
WEIGHT  132g
SENSITIVITY SETTING Comply to CNS
AMBIENT TEMP.  -10℃ ～ +55℃
AMBIENT HUMIDITY  0 ～ 95%
MATERIAL  Burning-proof plastics
DIMENSIONS  102 (Dia.) × 45 (H) mm
COLOR White


  • EFFECTIVE ALERT AREA
HEIGHT/CONSTRUCTION UNDER 4M 4M ～ 8M
Fire-proof Building 70 M2 35 M2
Ordinary Building 40 M2 25 M2


  • ORDER INFORMATION
CM-WSK701-31 3-wire with remote indicator output
CM-WSK701-31H 3-wire with self-protection
CM-WSK701-41 4-wire with relay output
